SC(B)13 iron core dry type transformer
Products Category
Keyword
SC(B)13 iron core dry type transformer
Industrial rectifier power transformer
Details
Product Overview
SC(B) dry-type transformer is made of F-class environmentally friendly epoxy resin cast under vacuum, which is a kind of dry-type transformer with high mechanical strength, electrical strength and heat-resistant strength. It is the first choice of urban power grid reconstruction, especially suitable for high-rise buildings, airports, power stations, commercial centres and other important places that require fire, explosion-proof and moisture-proof.
Characteristics
Explosion-proof, explosion-proof, pollution-free, maintenance-free, low noise, low loss and so on.
The shell is made of stainless steel or aluminium alloy, and the way of inlet and outlet can be taken as follows: top inlet and outlet \ bottom inlet and outlet, bottom inlet and outlet.
Executive standard
2 .1IEC60076 dry-type power transformer 2.2GB1094.1 power transformer
2.3GB1094.11 dry-type power transformer
2.4GB/T10228 dry-type power transformer technical parameters and requirements
2.5JB/T10028-20046KV-500KV level power transformer sound level
2.6GB20052 power Transformer

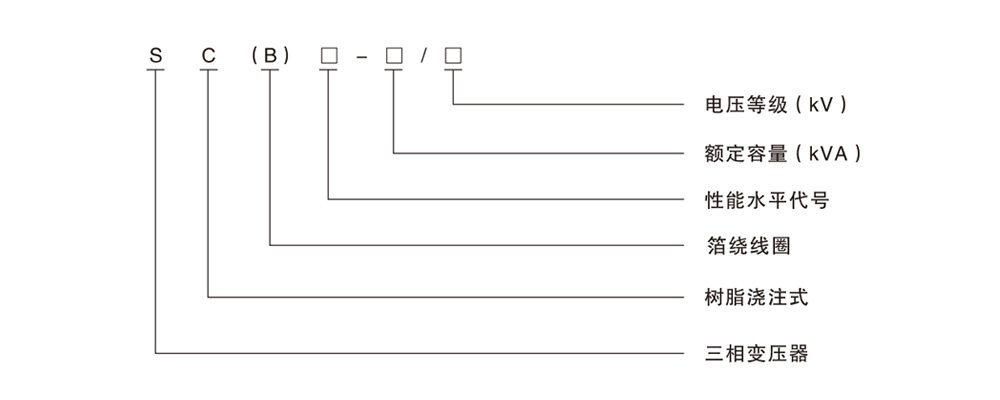

Type and meaning
Performance parameter table
Model No. |
Rated capacity (KVA) |
Link Group Label | Voltage combination (KV) |
No-load loss(W) |
Load Loss(W) (120℃) |
No-load current (%) | Short circuit impedance (%) | ||
| Oppressive | Scope of decomposition | Undervoltage | |||||||
| SC13-30 | 30 |
YynO |
10 |
±5% |
0.4 | 150 | 710 | 2.3 |
4.0 |
| SC13-50 | 50 | 215 | 1000 | 2.2 | |||||
| SC13-80 | 80 | 295 | 1380 | 1.7 | |||||
| SC13-100 | 100 | 320 | 1570 | 1.7 | |||||
| SC13-125 | 125 | 375 | 1850 | 1.5 | |||||
| SC13-160 | 160 | 430 | 2130 | 1.5 | |||||
| SCB13-200 | 200 | 495 | 2530 | 1.3 | |||||
| SCB13-250 | 250 | 575 | 2760 | 1.3 | |||||
| SCB13-315 | 315 | 705 | 3470 | 1.01 | |||||
| SCB13-400 | 400 | 785 | 3990 | 1.01 | |||||
| SCB13-500 | 500 | 930 | 4880 | 1.01 | |||||
| SCB13-630 | 630 | 1070 | 5880 | 0.9 |
6.0 | ||||
| SCB13-630 | 630 | 1040 | 5960 | 0.9 | |||||
| SCB13-800 | 800 | 1215 | 6960 | 0.9 | |||||
| SCB13-1000 | 1000 | 1415 | 8130 | 0.9 | |||||
| SCB13-1250 | 1250 | 1670 | 9690 | 0.9 | |||||
| SCB13-1600 | 1600 | 1960 | 11730 | 0.9 | |||||
| SCB13-2000 | 2000 | 2440 | 14450 | 0.7 | |||||
| SCB13-2500 | 2500 | 2880 | 17170 | 0.7 | |||||
